Verbal Working Memory Load Dissociates Common Indices of the Numerical Distance Effect: Implications for the Study of Numerical Cognition

Numerical Comparison and the Numerical Distance Effect

The ability to compare two numbers is a fundamental numerical ability that has been the subject of much empirical research (McCloskey, 1992). Indeed, McCloskey (1992) argued that the ability to select the larger of two quantities is the criterion for the understanding of numbers. While a great deal of research exists highlighting both the parallels and differences between comparing symbolic quantities and non-symbolic quantities, (e.g., Maloney, Risko, Preston, Ansari, & Fugelsang, 2010; Holloway & Ansari, 2008), the present paper focuses on the comparison of symbolic quantities. This ability to select the larger of two quantities appears to represent a fundamental building block of higher level mathematics as it is related to one’s overall math ability (Holloway & Ansari, 2008).

The most often studied phenomenon in numerical comparison is the numerical distance effect (NDE). When comparing two numerical quantities, participants are faster and more accurate at indicating which of two numbers is larger when the numerical distance separating the two numbers is relatively large (e.g., 2 vs. 9), compared to when it is small (e.g., 8 vs. 6; Dehaene, Dupoux, & Mehler, 1990; Moyer & Landauer, 1967). To date, numerical comparison has been predominantly assessed by two tasks. In a comparison to a standard task, participants are shown one number and are asked to indicate whether that number is higher or lower than a standard (e.g., 5). In a simultaneous presentation task, participants see two numbers presented at the same time and are asked to indicate the larger (or the smaller) of the numbers. These two tasks elicit NDEs that are comparable in magnitude and, as such, have been used interchangeably in the literature. Since its discovery, the NDE has taken a prominent place in studies on numerical cognition, both at the behavioral level (e.g., Dehaene, Dupoux, & Mehler, 1990), and at the neural level (e.g., Holloway & Ansari, 2008) as it is held to provide a critical clue as to how numbers are represented in the mind.

One of the most prominent accounts of the NDE in numerical comparison posits that the NDE is due to the placement of numbers along an internal mental number line (Restle, 1970). This theory presumes an analogue system in which numerical values correspond to spatial coordinates on a mental number line. The location of a number on the mental number line is not exact, but is represented as a distribution around the true location of that number on the line. Thus, the closer two numbers are on the number line, the more their representations will overlap. Numerical comparison in this model can be achieved by comparing the relative location of the activated representations on the mental number line (e.g., Pinel et al., 2001; Restle, 1970). According to this theory, as the distance between two digits decreases the difficulty of discriminating their location on the mental number line increases. This manifests as longer response times and lower accuracies for close digit pairs compared to far digit pairs. This explanation of the NDE is typically referred to as the representational overlap view and in its various forms represents the dominant theory of the NDE (e.g., Cohen Kadosh et al., 2005; Kaufmann & Nuerk, 2005; Piazza, Izard, Pinel, Le Bihan, & Dehaene, 2004; Turconi, Campbell, & Seron, 2006).

In contrast to the representational overlap view, Verguts, Fias, and Stevens (2005; see also Van Opstal, Gevers, De Moor, & Verguts, 2008) have stressed the role of stimulus response associations in generating the NDE. According to the Verguts et al. (2005) model of exact small number representation (which only addresses small numbers as other confounding factors arise with larger numbers; see Brysbaert, 1995), each digit is differentially associated with the responses “smaller than” and “larger than.” Within this model, as digit magnitude increases, the association between that digit and the “larger than” response increases and the association with the “smaller than” response decreases. Likewise, as digit magnitude decreases, the association between that digit and the “smaller than” response increases and the association with the “larger than” response decreases. When two numbers are presented, the model chooses, for example the larger number, via a process of response competition wherein, over time, the digit with the stronger association will be more likely to be selected. According to this model, the NDE results from a greater amount of response competition between two digits with similar strength of associations with the relevant response. For example, when presented with two numerically close numbers, both numbers activate the response “larger than” to a similar degree making it harder for the system to discriminate between these two numerosities. This increased response competition manifests in longer response times (RTs) and lower accuracies for close relative to far digit pairs.

More recently, a third account of the NDE has been put forth. Van Dijck and Fias (2011) suggest that during tasks that require the comparison of numbers, participants spontaneously make use of the inherent ordinal structure of the number system and systematically map the numbers onto an internal number line that is held in WM (this differs from the above account which suggests a mental number line held in long-term memory). This account suggests that it is from the fact that the positions in this temporary store are systematically associated to space, the NDE effect naturally follows.

The Numerical Distance Effect and Working Memory

Neither the representational overlap account nor the response competition account make explicit predictions about the potential contribution of verbal WM to the NDE. This is likely due in large part to the aforementioned preponderance of studies examining the role of WM in higher level mathematical processing rather than in lower level numerical processing. That said, evidence that WM is involved in other low-level numerical processes suggests that there is good reason to expect that WM may play an important role in numerical comparison. For example, Lyons and Beilock (2011) investigated the role that trait-level WM capacity plays in inferring ordinality from both novel symbols and Arabic digits. Participants that were defined as high WM capacity outperformed their low WM capacity counterparts both in learning ordinal information with novel symbols and in extracting ordinality information from sequential sets of Arabic digits. Although this study did not employ a numerical comparison task, ordinality may be an important part of numerical comparison (e.g., Restle, 1970). Furthermore, standard versions of comparison tasks require the temporary storage and manipulation of information (a hallmark of a task that requires WM; Baddeley & Hitch, 1974). The clearest example of this idea is in the comparison to a standard task. In this task, participants must maintain the standard (often the digit 5) in WM throughout the task. Lastly, evidence from research in math anxiety suggests that WM could contribute to numerical comparison. Specifically, in the context of a numerical comparison task, Maloney, Ansari, and Fugelsang (2011) demonstrated that math-anxious individuals, who are thought to suffer from a reduced verbal WM capacity when doing number-related tasks (e.g., Ashcraft & Kirk, 2001), had larger NDEs than their non-math-anxious peers on both the comparison to a standard task and the simultaneous comparison task.

Van Dijck and Fias’ (2011) account of the NDE does make specific claims about the role that verbal WM should play in the NDE. Specifically, given their theory that the mental number line is constructed in WM in response to the need to compare numbers within a task, verbal WM resources are thus required for the construction of the mental number line. Therefore, if one were to impose a verbal WM load, then we should see no (or a reduced) NDE arise. Herrera, Macizo, and Semenza (2008) presented evidence inconsistent with the prediction that WM is involved in numerical comparison. They had participants perform lower or higher than five judgments (comparison to a standard) under varying WM loads and demonstrated no effect of WM load on the NDE. However, while, the comparison to a standard task and a simultaneous presentation task both elicit NDEs of roughly the same magnitude, using these two tasks interchangeably may not be a good practice. Research by Maloney et al. (2010) demonstrates that these two tasks vary in terms of their split-half reliability and, more surprisingly, that a person’s NDE on one of these tasks is not predictive of the size of their NDE that arises in the other task, suggesting that these two tasks may be tapping into different representations or processes. Thus, the fact that Herrera et al. (2008) found no effect of WM on the comparison to a standard task does not mean that we should assume no effect of WM on the simultaneous presentation task. Against this background we set out to further investigate the role of verbal WM in numerical comparison using both the simultaneous comparison task and the comparison to a standard task.

Method

Results

Two participants were removed because their accuracy was below 20% on the WM task, meaning that they did not have enough trials to calculate a reliable score in those cells. This left us with 47 participants. RTs and errors were analyzed across participants with Task, Numerical Distance, and WM load as within-subject factors. Trials on which participants responded incorrectly to the WM load (12.0%) and trials on which there was an incorrect response in the number comparison task (3.5%) were removed prior to RT analysis. Remaining RTs were submitted to an outlier removal procedure using a 2.5 standard deviation cutoff in each cell resulting in the removal of an additional 3.8% of the data. Table 1 depicts the mean RT and errors as a function of Task, Numerical Distance, and WM load, and Figure 1 displays the Task, WM by Numerical Distance interaction in terms of the NDE.

A 2 (Task: comparison to a standard vs. simultaneous comparison) x 2 (WM load: zero vs. high) x 2 (Numerical Distance: 1 vs. 4) ANOVA conducted on the RT data yielded no main effect of Task, F(1, 46) = 2.8, MSE = 60180.3, p = .10, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .06. There was a main effect of WM load, F(1, 46) = 81.4, MSE = 57874.4, p < .001, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .64, such that responses were slower under a high WM load, and a main effect of Numerical Distance, F(1, 46) = 113.6, MSE = 2150.0, p < .001, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .71, such that responses were faster for distances of 4 than for distances of 1. The Task x Load interaction was marginal, F(1, 46) = 4.03, MSE = 26442.7, p = .05, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .08, whereby the effect of load was larger in the comparison to a standard task than the simultaneous comparison task. There was also a Task x Numerical Distance interaction, F(1, 46) = 9.9, MSE = 3289.4, p = .003, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .18, such that the NDE was larger in the comparison to a standard task than the simultaneous comparison task. There were no other significant two-way interactions. Importantly, there was also a Task x WM load x Numerical Distance interaction, F(1, 46) = 11.1, MSE = 1734.1, p = .002, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .19. The three-way interaction was the product of two WM load x Distance interactions that took opposite forms as a function of Task. Specifically, for the comparison to a standard task, the size of the NDE increased from the zero load (59 ms) to the high load (80 ms), whereas for the simultaneous comparison task, the size of the NDE decreased from the zero load (50 ms) to the high load (14 ms).

A parallel analysis on the error data yielded a main effect of Numerical Distance, F(1, 46) = 18.1, MSE = 7.3, p < .001, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .28, whereby participants were more accurate in the Distance 4 condition. The interaction between Load and Distance was significant, F(1, 46) = 4.9, MSE = 7.4, p = .03, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .10. The pattern of means that make up these interactions qualitatively mirrored those in RT. There were no other significant main effects or interactions.

Discussion

In Experiment 1, we assessed the role of verbal WM in numerical comparison by examining the conjoint effects of verbal WM load and numerical distance in the context of two classic numerical comparison tasks – the comparison to a standard and simultaneous numerical comparison tasks. Critically, the influence of verbal WM load was qualitatively different across these two variants. Specifically, in the simultaneous comparison task we found an interaction between verbal WM load and the NDE whereby the size of the NDE was smaller under a high verbal WM load than under no verbal WM load. Conversely, in the comparison to a standard task the NDE was larger under a high verbal WM load than under no verbal WM load. This dissociation provides further evidence that the two tasks used most often in the field of numerical cognition in studies of the NDE may be indexing different underlying processes (i.e., they are differentially affected by verbal WM load). While Maloney et al. (2010) suggested that this may be the case (due to the lack of a correlation between the NDEs produced in each task), there has yet to be any strong experimental evidence to substantiate this claim before now. Furthermore, this task-driven dissociation is not currently predicted by any theory of numerical comparison. In a similar vein, another important result from Experiment 1 was the elimination of the NDE in the high load condition of the simultaneous comparison task. The elimination of the NDE is particularly interesting in the context of claims that the NDE is impervious to elimination (Dehaene, 2011). Indeed, the lack of an NDE while individuals compare two numbers is difficult to reconcile with the notion that the NDE results from how numbers are represented (information that presumably has to be accessed to complete the comparison). However, the elimination of the NDE under verbal WM load is consistent with the account put forth by van Dijck and Fias (2011) who claim that the mental number line is constructed in WM. The fact that a verbal WM load dissociates the NDEs that arise in these two comparison tasks, however, is not predicted by any model of the NDE.

The increase in the NDE as a function of increased verbal WM load in the comparison to a standard task is inconsistent with the findings of Herrera et al. (2008) who reported that the NDE in the comparison to a standard task was unaffected by increased WM loads. It is likely that the WM manipulation in the Herrera et al. (2008) experiment did not tax participant’s WM capacity to the same degree as that used here and as such they did not detect the interaction. One could argue that one way to account for the overadditive interaction between verbal WM and the NDE is to do so by recourse to a scaling argument. While there are cases whereby the size of an effect of interest does increase as overall RTs increase (as they do in the high verbal WM load condition here), this argument is rather weak for the current data as evidenced by the underadditive interaction in the simultaneous presentation task (i.e., slower RTs and a smaller NDE).

Experiment 1 has yielded a complex pattern of results relating WM load to the NDE in two different numerical comparison tasks. Specifically, increasing verbal WM load decreases the size of the NDE in the simultaneous presentation task, but increases the size of the NDE in the comparison to a standard task. The entire pattern of results is not predicted by any existing account of numerical comparison and demonstrates that the contribution of WM to numerical comparison is not in any way straightforward (at least provided current assumptions in the numerical cognition literature). This complex pattern thus provides a unique opportunity for novel insights into numerical comparison in general and the NDE in particular. In Experiment 2 we begin the attempt to decompose this complex pattern of results.

Method

Results

RTs and errors were analyzed across participants, with Physical Distance, WM load, and Task variant as within-subject factors. Trials on which participants responded incorrectly to the WM load (10.6% in the comparison to a standard task and 9.7% in the simultaneous presentation) or made an incorrect response (9.4% and 1.8%, respectively) were removed prior to RT data analysis. Remaining RTs were submitted to a 2.5 standard deviation outlier removal procedure resulting in the removal of an additional 3.0% and 2.9% of trials, respectively. Table 2 depicts mean RTs and error rates for each distance under each WM load for each task variant. Figure 2 depicts the DE under each WM load for each task variant.

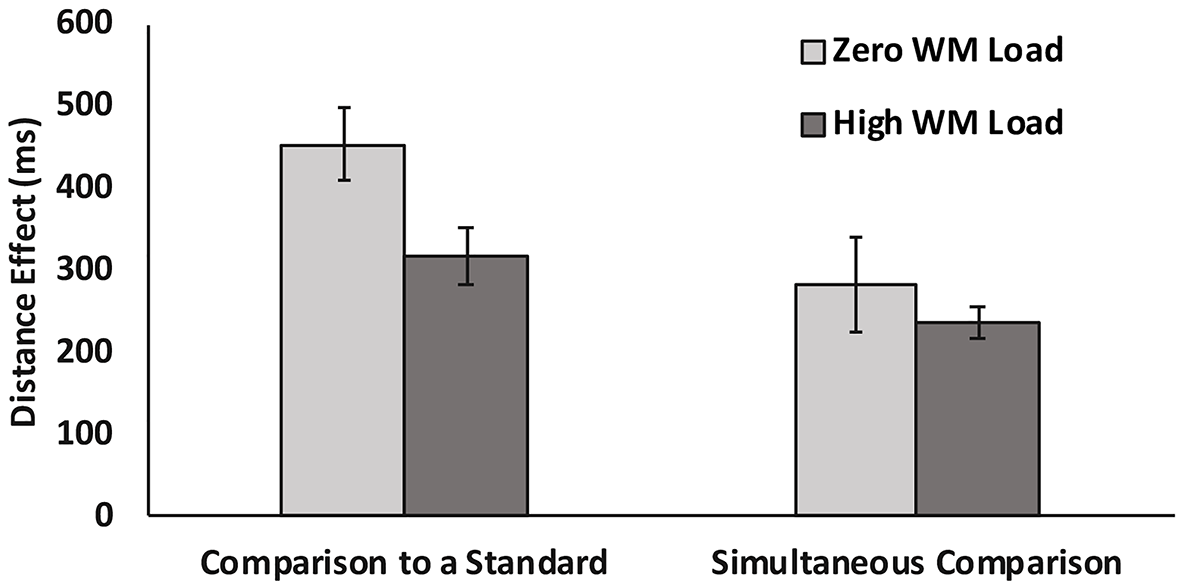

A 2 (Task: comparison to a standard vs. 2-item comparison) x 2 (WM load: zero vs. high) x 2 (Physical Distance: 1 vs. 4) ANOVA conducted on the RT data yielded a main effect of Task, F(1, 42) = 15.8, MSE = 123980.2, p < .001, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .27, a main effect of WM load, F(1, 42) = 24.9, MSE = 100947.8, p < 0.001, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .37, and a main effect of Distance, F(1, 42) = 164.8, MSE = 53970.1, p < .001, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .78. There was a significant WM load x Distance interaction, F(1, 42) = 4.2, MSE = 37581.7, p = .047, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .09, whereby as WM load increased the NDE decreased. There was also a significant Task x Distance interaction, F(1, 42) = 8.3, MSE = 36535.2, p < .01, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .16, such that the size of the NDE was larger in the comparison to a standard task than in the 2-item comparison task. Most critically, the three-way interaction that was observed in Experiment 1 was not found here, F(1, 42) = 1.0, MSE = 32100.5, p = .32, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .02.ⁱⁱ

A parallel analysis on the error data yielded a main effect of Task, F(1, 42) = 24.1, MSE = 221.1, p > .01, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .37, a main effect of WM load, F(1, 42) = 5.7, MSE = 37.8, p = .02, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .12, a main effect of Numerical Distance, F(1, 42) = 41.8, MSE = 62.9, p < .01, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .50, and a Task x Numerical Distance interaction, F(1, 42) = 50.0, MSE = 57.6, p < .01, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .49, such that the size of the NDE was larger in the comparison to a standard task than in the 2-item comparison task. There was no Task x WM load x Numerical Distance Interaction, F(1, 42) = 2.2, MSE = 47.8, p = .14, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .05.

Discussion

In Experiment 2 we assessed whether the dissociation that was observed in Experiment 1 was driven by an inherent difference between the two comparison tasks by removing the numerical components of the tasks. The results of Experiment 2 are inconsistent with this idea. When squares were used as stimuli, the size of the distance effect decreased as a function of increased WM capacity in both of versions of the comparison tasks. If the act of comparing one item to a standard or comparing two simultaneously presented items made differential demands on WM, then we should have observed a similar pattern as that observed in Experiment 1. Specifically, we should have observed an increase in the distance effect in the comparison to a standard task and a decrease in the distance effect in the 2-item comparison task as a function of increased verbal WM load. This was not the case. Thus, it appears that the dissociation observed in Experiment 1 derives from an interaction between the particular comparison task and the to-be-compared stimuli (i.e., Arabic digits).

Method

Results

RTs and errors were analyzed across participants, with Numerical Distance and WM load as within-subject factors. Trials on which participants responded incorrectly to the WM load (13.4%) or made an incorrect response (3.8%) were removed prior to RT data analysis. Remaining RTs were submitted to a 2.5 standard deviation outlier removal procedure resulting in the removal of an additional 3.0% of trials. An additional 2 participants were removed for having NDEs that were greater than 2.5 standard deviations from the mean. Table 3 depicts mean RTs and error rates for each distance under each WM load. Figure 3 depicts the NDE under each WM load.

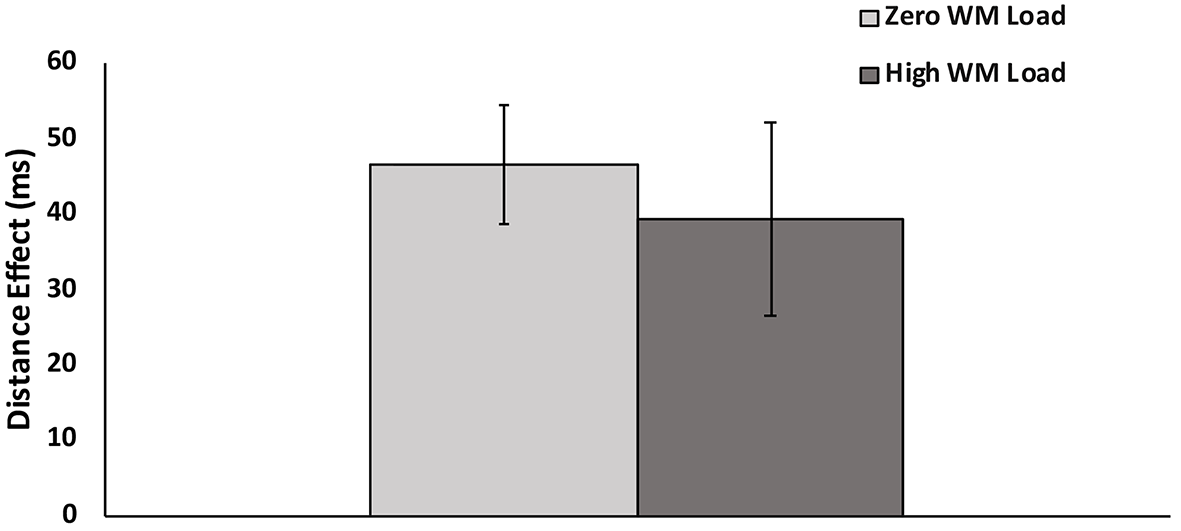

A 2 (WM load: zero vs. high) x 2 (Numerical Distance: 1 vs. 4) ANOVA conducted on the RT data yielded a main effect of WM load, F(1, 41) = 49.71, MSE = 47835, p < .001, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .548, such that response times were quicker in the zero WM load condition (659 ms) than in the high WM load condition (897 ms). There was also a main effect of Numerical Distance, F(1, 41) = 13.1, MSE = 2983, p < .001, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .242, such that response times were slower at a Numerical Distance of 1 (793 ms) than at a Numerical Distance of 4 (762 ms). Importantly, there was also a WM load x Numerical Distance interaction, F(1, 41) = 4.62, MSE = 3116, p = .038, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .101. The form of this interaction was such that the effect of Numerical Distance was larger in the zero WM load (49 ms) than in the high WM load (12 ms). In fact, a one-sample T Test conducted on the RT data in the high load condition yielded no effect of Numerical Distance, t < 1, while there was a significant effect of numerical distance in the zero load condition, t(41) = 6.1, p < .001. Parallel analyses on the error data yielded no main effects and no significant WM load x Numerical Distance interaction.

Discussion

Experiment 3 served to test the account that the dissociation that was observed in Experiment 1 resulted from the exact number pairings that were used. Specifically, in Experiment 1, because there were a greater number of possible number pairs in the simultaneous comparison task than in the comparison to a standard task, it is possible that the stimuli themselves could have caused the observed pattern. Thus, in Experiment 3 we ran the simultaneous comparison task using the same number pairings that were used in the comparison to a standard task in Experiment 1. If it was the specific stimuli that were used that was causing the overadditivity in the comparison to a standard task (relative to the underadditivity that is observed in the simultaneous comparison task) then we would expect to see overadditivity in Experiment 3. We did not. Rather, the pattern that was observed in the simultaneous comparison variant used in Experiment 3 replicated that observed for the same variant of the task in Experiment 1. As such, we can conclude that the differential effect of verbal WM load on these two task variants is not dependent upon the specific number pairing used (at least within the 1-9 range of numbers).

Method

Results

RTs and errors were analyzed across participants, with Numerical Distance and WM load as within-subject factors. Trials on which participants responded incorrectly to the WM load (11.8%) or made an incorrect response (0.7%) were removed prior to RT data analysis. Remaining RTs were submitted to a 2.5 standard deviation outlier removal procedure resulting in the removal of an additional 2.9% of trials. Table 4 depicts mean RTs and error rates for each distance under each WM load. Figure 4 depicts the NDE under each WM load.

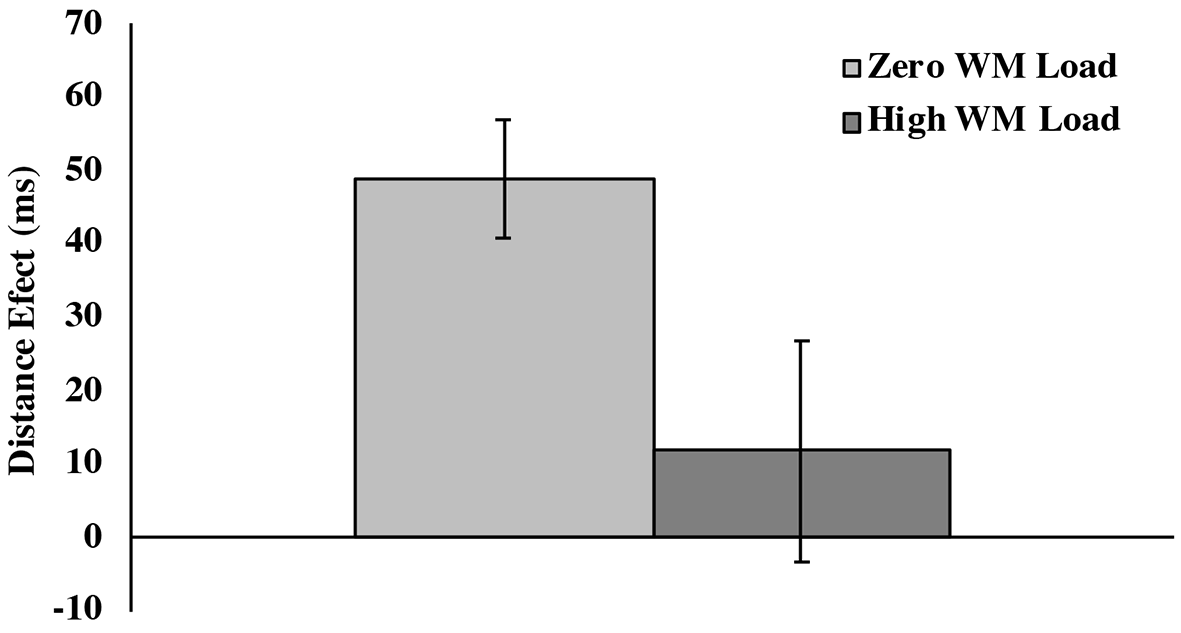

A 2 (WM load: zero vs. high) x 2 (Numerical Distance: 1 through 4) ANOVA conducted on the RT data yielded a main effect of WM load, F(1, 76) = 101.4, MSE = 62102.4, p <.001, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .572, such that response times were quicker in the zero WM load condition (714 ms) than in the high WM load condition (917 ms). There was also a main effect of Numerical Distance, F(3, 228) = 16.1, MSE = 4668, p = .001, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .175, such that response times increased as numerical distance decreased. Importantly, there was no WM load x Numerical Distance interaction, F(3, 228) = 0.79, MSE = 3427, p > .05, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .010. Parallel analyses on the error data yielded a main effect of WM load, F(1, 76) = 7.24, MSE = 15.4, p = .009, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .087, such that more errors were made in the zero load condition (1.0%) than under the high load condition (0.6%). There were no other main effects and no significant WM load x Numerical Distance interaction.

Discussion

Experiment 4 served to test whether the decrease in the DE under increased WM load that was observed in Experiment 2 could be explained by the fact that, in Experiment 2, the standard was presented on each trial. Here, when the standard (5) was presented on each trial, the NDE did not decrease under increased WM load. Therefore, we can conclude that the difference in the patterns observed on the comparison to a standard task in Experiments 1 and 2 (i.e., an overadditive interaction with numerical stimuli and an underadditive interaction with squares) cannot be explained by the presentation of the standard stimulus at the beginning of each trial in Experiment 2 but not in Experiment 1. In Experiment 4, when the standard (5) was presented on each trial, the NDE neither increased nor decreased under increased verbal WM load. This pattern is further unpacked in the General Discussion.

The Elimination of the NDE in Simultaneous Presentation

The interaction between the NDE and WM load provides important new challenges for theories of the distance effect, specifically, and numerical representation in general. Here we have demonstrated in two experiments that in the simultaneous presentation task, an increased WM load leads to the elimination of the NDE. There are at least two theoretically distinct ways that one could explain the elimination of the NDE under a high verbal WM load. The first is a disruption account, which explains the elimination by recourse to the idea that the mechanism that gives rise to the NDE is in some fashion disrupted under a verbal WM load and thus there is no NDE produced (for a similar argument with the SNARC effect see Herrera et al., 2008; van Dijck, Gevers, & Fias, 2009). For example, if access to a noisy representation on a mental number line that is held in long term memory produces the NDE (i.e., the representational overlap account; e.g., Cohen Kadosh et al., 2005; Kaufmann & Nuerk, 2005; Piazza, Izard, Pinel, Le Bihan, & Dehaene, 2004; Turconi, Campbell, & Seron, 2006), then the present results suggest that maintaining a verbal WM load interferes with access to that representation. In other words, the verbal WM load could be preventing either the mapping of the input (Arabic digit) to a representation or the access of said representation from unfolding in the normal manner. Accordingly, the account by van Dijck and Fias (2011) would suggest that the increased verbal WM load prevents participants from actually constructing a mental number line in WM and, as such, no NDE arises under high verbal WM load.

The second account of the elimination of the NDE under high verbal WM load in the simultaneous comparison task is that the NDE is absorbed into slack created by the need to maintain the verbal WM load (Besner & Risko, 2005; Pashler, 1994; Risko & Besner, 2008). In this account, the mechanism that gives rise to the NDE can operate in parallel to the mechanism responsible for the maintenance of the verbal WM load and, in the delay caused by the latter, the interference can be resolved. Critically, this account requires that the mechanism that gives rise to the NDE is one that is capable of reducing with the passage of time (Pashler, 1994). With respect to both the overlapping representations account and Verguts et al.’s (2005) account of numerical comparison, amendments would have to be made that would allow the amelioration of the NDE over short periods of time (e.g., a second). In addition, positing that the elimination of the NDE is due to absorption is actually akin to positing that verbal WM is not involved in numerical comparison in the context of a simultaneous presentation.

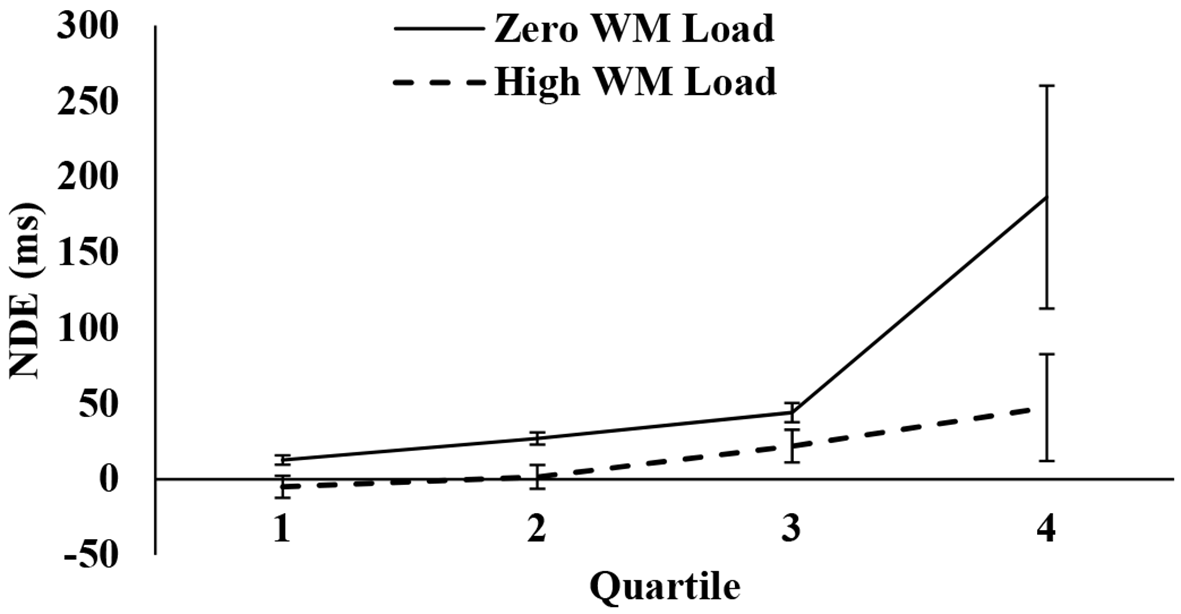

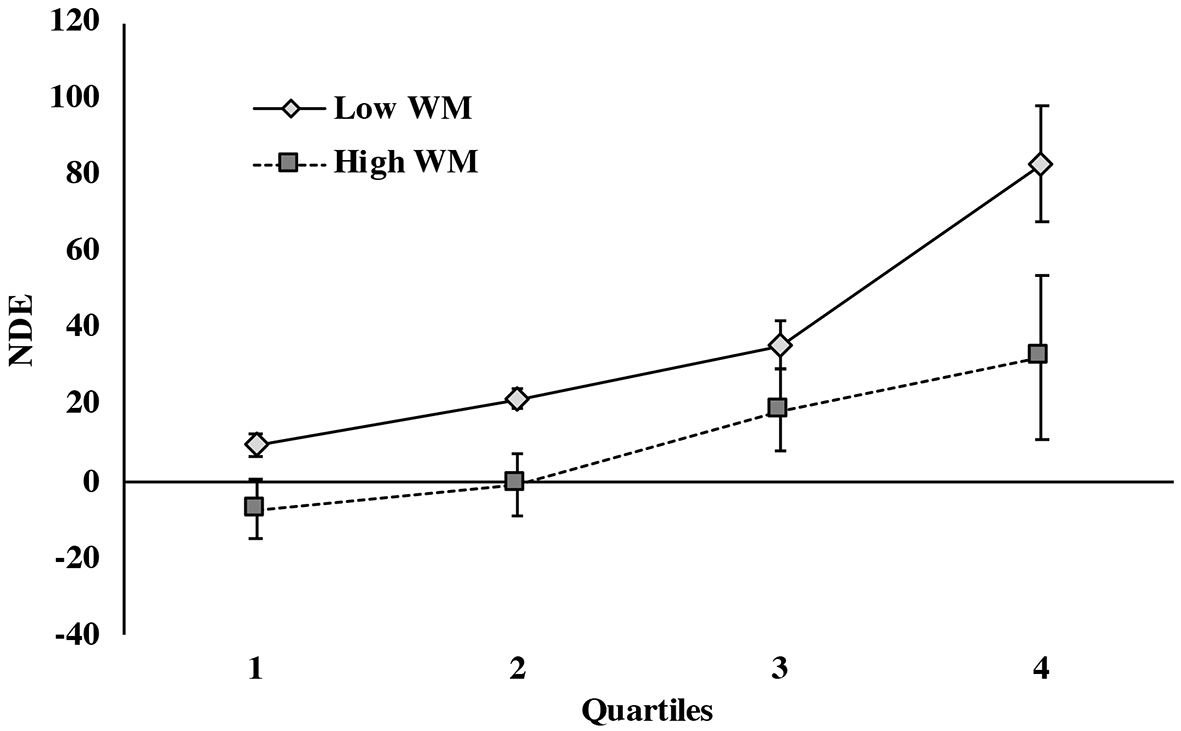

One strategy for distinguishing between the disruption and absorption accounts of the elimination of the NDE in the simultaneous presentation condition is to use the time-course of the NDE. According to an absorption account, the NDE should decrease in magnitude as overall RT increases (for the basis of this logic see work on the Simon effect; De Jong et al., 1994; Risko & Besner, 2008; Rubichi et al., 1997). Thus, in the present data, we can look at the time course of the NDE and assess whether it decreases as RTs increase (as predicted by the absorption account). Evidence for this pattern should be present in both the low and high WM load conditions. Alternatively, according to the disruption account outlined above, the NDE should be absent throughout the response time distribution in the high WM load condition (i.e., disruption of access to the representations that give rise to the NDE should be independent of response speed). To look at this, we examined the simultaneous presentation data from Experiment 1 and split the RT data into quartiles (by subject and condition; see Figure 5). A repeated-measures ANOVA was conducted on data from each WM load condition.

Results of this analysis indicate that in the zero WM load condition there was a main effect of Distance, F(1, 46) = 11.8, MSE = 36220, p = .001, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .21, and a Distance x Quartile interaction, F(3, 138) = 4.9, MSE = 30929, p < .05, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .10, such that the effect of Distance increased as RTs increased. Conversely, in the high WM load condition there was no main effect of Distance, F(1, 46) = 1.9, MSE = 13563, p > .05, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .04, and there was no Distance x Quartile interaction, F(3, 138) = 1.8, MSE = 7083, p > .05, ${\mathrm{\eta }}_{\mathrm{p}}^2$ = .04. These data suggest that the NDE is not being absorbed into the cognitive slack created by the increased WM load. Alternatively, according to the disruption account outlined above, the NDE should be absent throughout the response time distribution in the high WM load condition (i.e., disruption of access to the representations that give rise to the NDE should be independent of response speed). While clarifying the explanation of the elimination of the NDE in the simultaneous presentation condition, the aforementioned analysis leaves open the reason for the dissociation between the two different comparison tasks.

One interesting issue that arises when considering the idea that a high verbal WM load disrupts the processes that produce the NDE is that participants could still accurately compare the two numbers despite this disruption. Specifically, existing accounts of numerical comparison do not offer a mechanism by which numerical comparison can occur without producing an NDE. Thus, if one accepts a disruption account as the explanation for the WM-induced reduction in the NDE, then a complete theory of numerical comparison would require the existence of a separate type of representation or mode of access that could support numerical comparison but not produce a distance effect. This is because participants in the present study are able to perform the numerical comparison task under high verbal load without demonstrating an NDE. One potential explanation could be based on the fact that in Experiments 1, 3, and 4 we used single digits 1-9. Perhaps in addition to storing numerical information on a mental number line we also have a mental store of basic “number facts” for numbers 1 through 9, such as “9 is larger than 5”. Akin to performing basic addition (e.g., 2+2=4) through direct retrieval, accessing these facts would presumably be independent of WM. In addition, these “number facts” need not have stored with them magnitude information per se, but rather semantic knowledge that “9 is larger than 5”, thus, when comparison is completed via recourse to these “number facts” an NDE would not arise.

NDEs in Two Classic Tasks Dissociated

Unlike the NDE in the simultaneous presentation task, the NDE in the comparison to a standard task increases with increased WM load. The dissociation reported here is particularly surprising given that the literature assumes that these two tasks are tapping the same underlying mechanisms (e.g. Van Opstal et al., 2008). This notion is nonetheless consistent with Maloney et al.’s (2010) observation that the NDEs that arise in the simultaneous presentation and the comparison to a standard task do not correlate with one another. Experiment 2 demonstrates that this pattern is not purely a result of the structure of tasks. Specifically, a version of the simultaneous presentation and comparison to a standard that used non-numerical stimuli did not show different patterns as a function of increases in WM load. Experiment 3 suggests that the same pattern emerges when the numerical stimuli used is exactly the same across tasks.

An alternative conceptualization of the dissociation between simultaneous presentation and comparison to a standard with numeric stimuli is that the tasks encourage different comparison strategies. For example, Todkill and Humphreys (1994), outside of the numerical comparison context, suggested that participants could adopt either a long-term comparison or short-term comparison strategy in successive comparison tasks. The critical difference between these strategies concerns where the “comparator” is stored – long-term memory or short-term memory. In the simultaneous presentation condition, where both to-be-compared digits are presented on the screen at the same time, it seems safe to assume that the digits are compared in short-term memory. In a similar vein, the non-numerical simultaneous presentation task used in Experiment 2 would also seem to encourage a short-term comparison strategy. However, the instructions for the comparison to a standard task would seem to encourage a more long-term comparison strategy wherein on each trial participants retrieve the comparison digit (5) from long-term memory in order to carry out the comparison. Interestingly, this seems less true of the comparison to a standard with non-numerical stimuli used in Experiment 2. In that task, the standard was presented on each trial (this was not the case in the numeric version used in Experiment 1). Indeed, pilot testing suggested that it would be difficult to perform the non-numeric comparison to a standard task without providing such support (note that performing the same task with a meaningful digit as the standard stored in memory is relatively easy). Thus, both simultaneous presentation tasks and the non-numeric comparison to a standard could all be viewed as encouraging a short-term comparison strategy whereas the numeric comparison to a standard could be viewed as encouraging a long-term comparison strategy. Critically, this pattern maps qualitatively onto the pattern of the WM by distance effect interactions across tasks. Namely, the three tasks that are putatively relying on a short-term comparison strategy all show WM by distance effect interactions where the distance effect decreases with increasing WM load, whereas the one task that putatively relies on a long-term comparison strategy shows a WM by NDE interaction where the distance effect increases with increasing WM load.

In Experiment 4, participants completed a comparison to a standard task, however, the standard (5) was presented at the beginning of each trial. In this novel version of the task, the NDE did not change as a function of the increase in verbal WM load. While this pattern may, at first, seem counterintuitive, it is, in fact, consistent with the aforementioned theory. Specifically, by presenting the standard (5) at the beginning of every trial, participants are able to either perform the comparison in short-term memory or to adopt a more long-term comparison strategy wherein on each trial they retrieve the comparison digit (5) from long-term memory and carry out the comparison. If participants are sometimes making the comparison in short-term memory (which would yield a decrease in the NDE under high WM load) and sometimes making the comparison on long-term memory (which would yield an increase in the NDE under high verbal WM load), then these two effects would cancel each other out, resulting in an additive interaction. Indeed, this is what we see in Experiment 4.

The present results suggest not only that participants may be using different comparison strategies across tasks, but that those strategies are also differentially reliant on WM. We have already discussed the potential mechanisms mediating the WM by distance effect interactions in the simultaneous presentation tasks. With respect to the long-term comparison strategy, the distance effect may be arising, in part, during the retrieval of the standard from long-term memory. For example, on presentation of the probe digit, it would be harder to recall 5 when the probe is near (e.g., 6) than far (e.g., 9) from that standard. The interaction with WM can be understood from the standpoint of Unsworth and Engle’s (2007) dual component theory of WM. In this theory, WM is involved in both active maintenance and controlled search from long-term memory (Unsworth et al., 2013; Unsworth & Engle, 2007). Thus, the increased WM load could impact the efficiency with which the standard is retrieved from long-term memory and because this is the same stage at which the NDE might arise (at least in part), the result is an overadditive interaction between WM load and the NDE. While speculative, this account does capture the complex pattern relating WM load to the NDE across two classic tasks, and, in so doing, provides a starting point for future investigations of this interaction.

Conclusion

We have assessed the role of verbal WM in numerical comparison by examining the effects of verbal WM load on the NDE in two classic numerical cognition tasks. We demonstrated that verbal WM does interact with the NDE and that the nature of the interaction is dependent upon the comparison task used. When comparing two simultaneously presented Arabic digits, the size of the NDE decreases (and here is eliminated) as a function of an increased verbal WM load. On the other hand, when comparing one Arabic digit to a standard, the size of the NDE increases as a function of increased WM load. We further demonstrated that this dissociation is not due to the task structure alone given that when both tasks are performed with squares as stimuli, the distance effect decreases in both tasks. Importantly, we present a novel account of how this dissociation of the NDE can be explained if participants adopt a long-term comparison strategy on the comparison to a standard task and a short-term comparison strategy on the simultaneous comparison task. This complex pattern has straightforward implications: (1) WM is intimately tied up with numerical comparison, (2) the NDE in simultaneous presentation and comparison to a standard are not equivalent, and (3) the NDE can be eliminated. These insights promise to generate further research.
